What is a

*VIR*chart, you ask? It’s a straightforward way of organizing the answers to a circuit question, one which comes with a built-in reminder of when Ohm’s law is valid.

Everyone who takes physics can spit back Ohm’s law…

*V = IR*. Wonderful. Problem is, too many students use this equation indiscriminately. Consider the basic circuit shown below. The goal is to determine the current through the 4 Ω resistor.

“Ah,” says the novice, “the voltage is 10 V, the resistance is 4 Ω, so by ohm’s law I divide to get a current of 2.5 A.”

“Boux,” says the teacher.** Ohm’s law cannot be used as a bludgeon. To teach the proper use of Ohm’s law, I organize my solution using a VIR chart like the one here.

The key to this chart:

**Any other use of**

*Ohm's law can ONLY be used when two of the three entries in a single row are known.**V=IR*constitutes fraud.

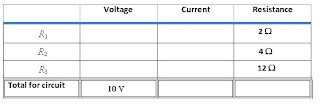

Initially, I've only input the given values: the voltage of the battery, and the resistance of each individual resistor. Note that I know only one value in each row -- that indicates that there's more work to be done before Ohm's law is useful. The obvious approach is to find the equivalent resistance of the whole circuit. First I combine the parallel resistors to get this circuit:

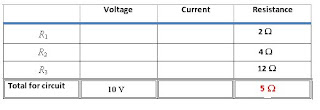

Now, it's clear that the total resistance must be 5 Ω. I plug that into the

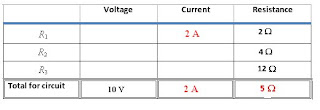

*VIR*chart:*Voila,*I have two of three entries in the "total" row completed. Ohm's law can be used to finish the row:

*I*=

*V/R*, giving a total current in the circuit of 2 A. Woo-hoo! A

*correct*use of the law.

**The**

*Warning:**VIR*chart is not a magic square. It is not permissible just to add the resistances algebraically to get the total; we'll see that 2 A is NOT the sum of the "current" column. The chart is merely a method of organizing one's solution. It is only useful in conjunction with circuit diagrams.

With that reminder, I'll see what else I can figure out by looking at the circuit diagrams. By definintion, the "total" current in the circuit is the current coming out of the battery. Since

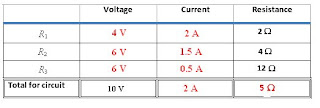

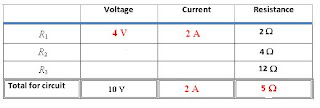

*R*_{1}is in series with the battery, it must take the full current from the battery -- all 2 A. I put that in the chart:And now I have two entries in the top row, so I use Ohm's law to find the voltage across the first resistor:Almost done. Now the trick is to remember the rules about voltage in series and parallel resistors: The voltage across parallel resistors is the same, but the voltage across series resistors adds to the total. (That's just a simple statement of Kirchoff's loop rule.) Since the 2 Ω resistor takes 4 V, and the total is 10 V, the 3 Ω equivalent resistance must take the remaining 6 V. And, since voltage across parallel resistors is the same for each, I can fill in 6 V for BOTH*R*_{2}and*R*_{3}. With two of the three entries in the rows, I can use Ohm's Law to find the missing currents.Checking the reasonability of my chart, I see that Kirchoff's junction rule is satisfied. The two parallel resistors take different currents that add to the total, and the smaller resistor takes more of the current. My work here is finished.

GCJ

* My stats: 2-4 with 2 runs scored, 3 assists and an error. Game MVP: Nebraska alumna Shelly Strand, my table leader at the time, whose defense at first base simply shut down the opposition (and saved me several more errors).

** “Boux” has sort of become a Jacobs catch phrase, as this is what I write on papers that show crazy mistakes like the one I’m describing here. The source of the phrase is an old Dave Barry column in which he asserts that Mets fans say, “Boo! You stupid bum!” while the more civilized Francophone Expos fans say, “Boux! Voux dumme bumme!” I’m paraphrasing, but that was the gist.

how did you find the resistance of the 2 parallel to be 3?

ReplyDeleteUse the formula for adding parallel resistors -- 1/R1 + 1/R2 = 1/R(equivalent). In this case, take 1/(4 ohms) plus 1/(12 ohms), then reciprocate the answer to get an equivalent resistance of 3 ohms.

ReplyDeleteGCJ

how did you get 5 as the total of the RESISTOR??

ReplyDeleteLook at the diagram where the 2 ohm resistor and the 3 ohm resistor are in series. Add up the series resistances to get 5 ohms.

ReplyDeletehow can you get 1/4 +1/12=3

ReplyDeleteAdd 1/4 + 1/12 to get 4/12... then take the recipricol of this answer to get 12/4 = 3. The equivalent resistance is 3 ohms.
